Industrial-grade metal asset tag system engineered for extreme durability, corrosion resistance, and long-term legibility — The Universal Aluminum Alloy Label delivers permanent identification for equipment, machinery, and assets in harsh industrial, outdoor, and commercial environments. Unlike paper or plastic labels that degrade quickly, our aluminum alloy marking tags withstand moisture, UV exposure, chemicals, abrasion, and temperature extremes. Leveraging advanced precision stamping, engraving, and digital printing technologies — including Self-adhesive label printing and Digital printing labels — our metal tags provide crisp text, logos, barcodes, and serial numbers that remain intact for decades.
Product Overview

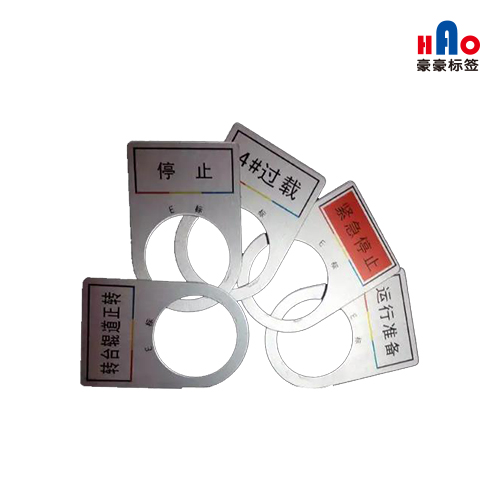

The Universal Aluminum Alloy Label is a heavy-duty metal identification solution built for extreme conditions. Whether you need to tag heavy machinery in a manufacturing plant, outdoor utility equipment, or critical assets in aerospace and defense, our aluminum labels provide permanent, legible identification that never fades or deteriorates. Constructed from high-grade aluminum alloy (typically 1050, 1060, 3003, or 5052 series), each label offers exceptional corrosion resistance, lightweight properties, and mechanical strength. The surface is treated with anodizing or protective coating to prevent oxidation and enhance readability. Our Roll simple self-adhesive label printing and Roll label printing capabilities allow for high-volume production of adhesive-backed aluminum labels, while precision engraving and stamping options serve permanent attachment applications using screws, rivets, or industrial adhesives.
Technical Specifications
- Material: High-grade aluminum alloy (series 1050, 1060, 3003, 5052) — corrosion-resistant, lightweight, non-magnetic
- Thickness options: 0.3 mm, 0.5 mm, 0.8 mm, 1.0 mm, 1.5 mm, 2.0 mm (custom thicknesses available)
- Dimensions: Custom sizes from 10×10 mm up to 200×300 mm — any shape (rectangular, circular, oval, custom die-cut)
- Surface finish: Brushed, matte, polished, anodized (clear, black, gold, colored), powder-coated, or protective clear coat
- Marking/engraving methods: Precision stamping, chemical etching, laser engraving, digital printing, screen printing, embossing, debossing
- Print/engrave resolution: Laser engraving up to 1200 DPI for fine text, logos, barcodes, and serial numbers
- Attachment methods: Industrial-grade self-adhesive backing (permanent acrylic), screw holes (2-4 holes), rivet holes, magnetic backing, zip ties (via holes)
- Adhesive options (self-adhesive version): Permanent high-tack acrylic (for metal/plastic/wood surfaces), low-temperature, high-temperature (up to +150°C), solvent-resistant, anti-static adhesive
- Anti-static option: Surface resistivity 10⁶–10⁹ Ω — for electronics manufacturing, cleanrooms, and ESD-sensitive environments
- Temperature range (in use): -40°C to +150°C (standard); high-temperature variants up to +300°C
- Environmental resistance: Corrosion-resistant (salt spray tested 500+ hours), UV-resistant (no fading), waterproof, chemical-resistant (oils, solvents, fuels, mild acids), abrasion-resistant
- Standards compliance: RoHS, REACH, ISO 9001, UL recognized (select configurations), MIL-STD-130 (identification marking)
- Color options: Silver (natural aluminum), black anodized, gold anodized, blue, red, green — custom colors via powder coating or anodizing
- Barcode compatibility: Supports Code 39, Code 128, QR codes, DataMatrix, PDF417 — laser-etched for permanent scanning
All specifications can be customized to meet specific industry requirements, including aerospace, automotive, military, marine, and industrial manufacturing standards.
Product Features & Advantages
Our Universal Aluminum Alloy Label outperforms paper, plastic, and even stainless steel tags through optimized material science and precision manufacturing. Unlike polymer labels that crack or fade, our aluminum tags provide permanent identification that survives decades of industrial use, chemical exposure, and extreme weather.
- Extreme corrosion resistance: Aluminum alloy with anodized or coated finish resists salt spray, moisture, humidity, and industrial chemicals — ideal for marine, outdoor, and chemical plant environments.
- Exceptional durability: Withstands abrasion, impact, vibration, and mechanical stress — labels remain legible even on heavy equipment and moving machinery.
- Wide temperature tolerance: Functions reliably from -40°C to +150°C (standard) with high-temperature variants available for engine compartments, furnaces, and industrial ovens.
- Permanent marking options: Laser engraving and chemical etching create marks that cannot fade, wear off, or be tampered with — guaranteed legible for the life of the asset.
- Lightweight yet strong: Aluminum alloy provides excellent strength-to-weight ratio — labels add negligible weight while offering superior durability.
- UV and weather resistance: No fading, cracking, or deterioration from sunlight, rain, snow, or extreme weather — maintains professional appearance for decades.
- Anti-static variant: Integrate Anti-static label technology for electronics manufacturing, cleanrooms, and ESD-sensitive environments — meets ANSI/ESD S20.20.
- High-resolution customization: Using Digital printing labels and laser engraving, we achieve fine detail for small fonts, complex logos, barcodes, and serial numbers.
- Multiple attachment methods: Self-adhesive backing (permanent acrylic), screw holes, rivet holes, magnetic backing, or zip tie slots — versatile mounting on metal, plastic, wood, concrete, and glass.
- Compatibility with asset tracking systems: Barcodes, QR codes, and DataMatrix codes can be laser-etched for permanent integration with inventory management and CMMS systems.
- Professional appearance: Clean, crisp markings with brushed or anodized finish enhance equipment presentation and brand image.
- No special maintenance required: Install and forget — aluminum labels require no periodic cleaning, recoating, or replacement under normal conditions.
How we differ from competitors: Many Metal Labels use thin foils or low-grade alloys that corrode or fade. Our Universal Aluminum Alloy Label uses premium series 3003/5052 alloy with industrial-grade anodizing, plus optional anti-static and high-temperature adhesives — backed by full digital customization, no MOQ barriers, and rapid prototyping from concept to production.
Method 1: Self-Adhesive Backed Labels (fastest installation)
- Clean the surface thoroughly: Remove dust, oil, grease, or moisture from the application surface (metal, plastic, wood, or concrete) using isopropyl alcohol or a suitable degreaser. For ESD-sensitive areas, use anti-static wipes.
- Dry the surface completely: Ensure no moisture remains before application.
- Peel the liner: Remove the protective backing from the self-adhesive aluminum label.
- Position and apply: Align the label carefully and press firmly from the center outward. For large labels, apply roller pressure for full adhesion.
- Allow adhesive to cure: Maximum bond strength is achieved after 24 hours at room temperature.
Method 2: Screw or Rivet Mount (permanent for high-vibration areas)
- Position the label: Place the aluminum label on the desired surface with pre-drilled mounting holes aligned.
- Mark hole locations: Use a marker to transfer hole positions onto the mounting surface.
- Drill pilot holes: Drill appropriate-sized holes for screws or rivets (size depends on label thickness and application).
- Secure the label: Attach using stainless steel screws, rivets, or pop rivets. Avoid over-tightening to prevent label deformation.
Method 3: Adhesive + Mechanical (recommended for extreme conditions)
- Apply adhesive backing: Follow self-adhesive steps above.
- Add mechanical fasteners: For additional security in high-vibration or outdoor environments, add screws or rivets through pre-drilled holes.
- Inspect periodically: Check fasteners annually for tightness in high-vibration applications.
Pro tip: For high-volume self-adhesive aluminum labels, order roll-form labels compatible with automatic label applicators to reduce installation time by up to 70%.
Application Scenarios
The Universal Aluminum Alloy Label is essential wherever permanent, durable asset identification is required for safety, compliance, and operational efficiency:
- Industrial manufacturing & heavy equipment: Machine serial plates, equipment ID tags, safety warning labels, maintenance instruction plates — withstands oil, vibration, and temperature extremes.
- Oil & gas facilities (onshore/offshore): Pipeline identification, valve tags, pressure vessel labels, wellhead markers — corrosion-resistant for harsh chemical and saltwater environments.
- Marine & shipbuilding: Vessel equipment tags, engine room labels, navigation equipment plates, lifeboat markers — saltwater-resistant, non-corrosive.
- Outdoor utilities & infrastructure: Electrical cabinet labels, utility pole markers, water treatment equipment tags, telecom tower identification — UV-resistant and weatherproof.
- Aerospace & defense: Aircraft component tags, ground support equipment labels, military asset tracking, weapon system identification — meets MIL-STD-130 standards.
- Automotive & commercial vehicles: VIN plates, engine component labels, fleet asset tags, trailer identification — high-temperature resistant for engine compartments.
- Construction & heavy civil: Scaffolding tags, crane load plates, equipment rental tracking, tool identification — abrasion-resistant for job site conditions.
- Logistics & warehousing: Pallet rack labels, storage bin plates, asset tracking tags for forklifts and material handling equipment — integrates with barcode scanning systems.
- Power generation & renewables: Solar panel identification, wind turbine component tags, transformer nameplates, substation equipment labels — outdoor-rated for decades.
- Public infrastructure & signage: Park equipment tags, bridge inspection plates, monument markers, directional signs — maintains appearance for 20+ years.
Benefits for Customers
Facility managers, maintenance engineers, procurement professionals, and asset managers choose our Universal Aluminum Alloy Label to reduce replacement costs, improve compliance, and ensure permanent asset traceability. Tangible value includes:
- Permanent identification — never replace labels again: Aluminum labels last 20+ years — eliminates recurring costs of paper/plastic label replacement. Estimated 90% reduction in relabeling expenses over asset lifecycle.
- Compliance with industry regulations: Meets OSHA equipment labeling requirements, ANSI safety tag standards, MIL-STD-130 for defense contracts, and ISO asset tracking requirements.
- Reduced downtime during maintenance: Clear, permanent labels enable technicians to quickly identify equipment, components, and safety hazards — faster repairs and inspections.
- Improved asset tracking accuracy: Laser-etched barcodes and QR codes enable error-free scanning for inventory management, CMMS integration, and audit trails.
- Enhanced safety: Permanent warning labels and safety instructions remain legible for the life of the equipment — reduces accident risk and liability exposure.
- Professional appearance: Brushed or anodized aluminum with crisp engravings enhances equipment presentation — reflects quality and attention to detail.
- Flexible order quantities: From prototype to millions — our digital and stamping production ensures competitive pricing and short lead times (as fast as 5-7 business days for custom orders).
- ESD protection (anti-static variant): Protects sensitive electronic components in manufacturing and cleanroom environments.
- No maintenance required: Install and forget — aluminum labels require no cleaning, recoating, or replacement under normal industrial conditions.
- Resistance to chemicals and cleaning agents: Labels withstand industrial solvents, degreasers, fuels, and cleaning agents commonly used in maintenance procedures.
