Industrial-grade cable marking system designed for data centers, electrical panels, telecommunications, and industrial machinery — The Professional Cable Identification Labels deliver clear, durable, and customizable identification that withstands moisture, extreme temperatures, and chemical exposure. Engineered to reduce downtime, prevent miswiring, and enhance safety, these labels are trusted by network engineers, electricians, and facility managers worldwide. Leveraging advanced Self-adhesive label printing and Digital printing labels technologies, our Cable Markers provide crisp text, barcodes, and color coding that remain legible for years.
Product Overview

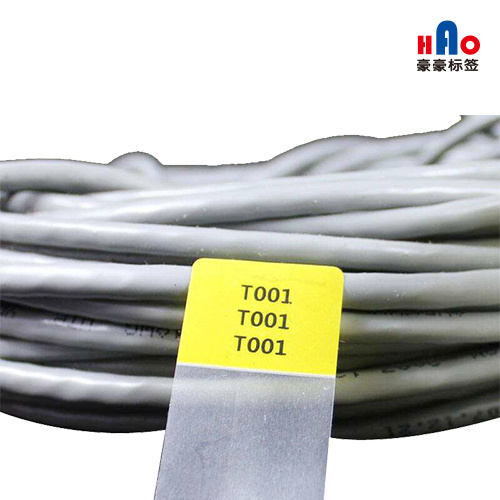

The Professional Cable Identification Labels are a comprehensive cable marking system built for accuracy and longevity. Whether you manage hundreds of network cables in a data center, electrical wiring in an industrial plant, or complex control panel connections, our tags eliminate confusion and dramatically reduce troubleshooting time. The system includes durable markers that attach via self-adhesive wrap-around, flag-style labels, clip-on tags, and heat-shrink sleeves, accommodating cables from 2mm to 30mm diameter. Manufactured from high-quality polyester (PET), polypropylene, or heat-shrink polyolefin, these labels resist abrasion, UV radiation, oils, solvents, and common industrial chemicals. Our Roll simple self-adhesive label printing and Roll label printing processes enable high-volume production with consistent quality, while optional anti-static layers protect sensitive signal cables in electronic environments.
Technical Specifications
- Cable diameter compatibility: 2 mm – 30 mm (custom sizes available for larger cables/bundles up to 100 mm)
- Label dimensions (marking area): From 15×15 mm up to 120×30 mm (flag style, wrap-around, or heat-shrink sleeves)
- Material options: Polyester (PET) — standard and flame-retardant, Polypropylene (PP), Heat-shrink polyolefin (3:1 shrink ratio), Vinyl, Anti-static PET
- Attachment methods: Self-adhesive wrap-around, adhesive flag style (extended tab for easy reading), clip-on reusable tags, heat-shrink sleeves (permanent)
- Adhesive types (self-adhesive version): Permanent acrylic (high-tack for oily/rough cables), removable, low-VOC, flame-retardant, anti-static adhesive
- Anti-static option: Surface resistivity 10⁶–10⁹ Ω — essential for data centers, server rooms, and electronics manufacturing
- Print technologies: High-resolution digital printing (variable data, QR codes, serialization), thermal transfer, laser printer compatible, inkjet
- Environmental resistance: Waterproof, UV-resistant (≥2 years outdoor), chemical-resistant (oils, solvents, mild acids, cleaning agents)
- Temperature range (in use): -40°C to +105°C (polyester); heat-shrink sleeves rated to +125°C
- Standards compliance: RoHS, REACH, UL 969 (marking and labeling systems), TIA/EIA-606 (cable labeling standard), ANSI/ESD S20.20 (anti-static variant)
- Color options: White, yellow, green, blue, red, orange, violet, brown, black — plus custom color matching for brand or zone coding
All specifications can be customized to meet specific industry requirements, including plenum-rated materials for air-handling spaces and low-halogen options for environmentally sensitive areas.
Product Features & Advantages
Our Professional Cable Identification Labels outperform generic cable tags through specialized materials, intelligent design, and rigorous quality control. Unlike temporary markers that fade, peel, or fall off, our system provides permanent, legible identification that survives years of handling, temperature cycles, and chemical exposure.
- Four attachment methods for any application: Self-adhesive wrap-around for quick installation, flag style for easy reading without cable movement, clip-on for reusable/temporary labeling, and heat-shrink sleeves for permanent, tamper-evident marking.
- Extreme environmental durability: Polyester (PET) construction resists abrasion, moisture, UV radiation (2+ years outdoor), and common industrial chemicals (oils, solvents, cleaning agents). Labels remain legible and intact in harsh conditions.
- Anti-static protection (ESD safe): Integrate Anti-static label technology to prevent electrostatic discharge that can damage sensitive network switches, servers, and control equipment — essential for data centers and electronics manufacturing.
- High-definition print quality: Using Digital printing labels, we achieve 1200 DPI resolution for small fonts, barcodes, and serial numbers. Thermal transfer options provide extreme abrasion resistance for industrial environments.
- Professional color coding system: Choose from 10 standard colors to create visual grouping (e.g., red for power, blue for data, yellow for fiber, green for ground). Custom color matching available for brand consistency.
- Printer compatibility: Works with thermal transfer Printers (recommended for durability), laser printers, inkjet printers, and dot matrix — seamless integration into existing label printing workflows.
- Flame-retardant options: UL-recognized flame-retardant polyester labels meet plenum ratings for air-handling spaces (UL 2043) and general flame resistance (UL 94 V-0).
How we differ from competitors: Many cable labels use weak adhesives that fail on oily or curved cables, lack anti-static protection, or offer limited customization. Our Professional Cable Identification Labels combine aggressive acrylic adhesives with optional ESD-safe construction, full digital customization, and multiple attachment methods — no MOQ barriers, rapid prototyping, and seamless scaling from hundreds to millions.
How to Use Professional Cable Identification Labels
Method 1: Self-Adhesive Wrap-Around Labels (most common)
- Clean the cable surface: Remove dust, oil, or moisture using an isopropyl alcohol wipe. For data centers, use anti-static cleaning wipes.
- Print the label: Use thermal transfer, laser, or digital printing to add text, barcodes, or color codes. Our labels are compatible with standard printers.
- Peel and wrap: Remove the liner, align the label around the cable, and wrap firmly. Overlap the adhesive ends by at least 5mm for a secure bond.
- Press to seal: Apply firm pressure across the wrapped area, especially at the overlap point. For flag-style labels, fold the non-adhesive end to create a readable tab.
Method 2: Heat-Shrink Sleeve Markers (permanent identification)
- Print or mark the sleeve: Use thermal transfer printing on heat-shrink tubing before installation.
- Slide over cable end: Before terminating the cable or connector, slide the heat-shrink marker into the desired position.
- Apply heat: Use a heat gun (approximately 120°C) to shrink the sleeve tightly around the cable. The sleeve conforms precisely to the cable diameter, creating a permanent, tamper-evident mark.
Method 3: Clip-On Tags (reusable / temporary)
- Print or write on the tag: Use a permanent marker or pre-printed label insert.
- Clip onto cable: Open the clip and attach to the cable at any point — no need to access cable ends.
- Remove or reposition as needed: Clip-on tags can be easily moved to different cables during maintenance or reconfiguration.
Pro tip: For high-volume cable labeling (500+ cables), order pre-printed roll labels compatible with automatic label dispensers to reduce application time by up to 70%.
Application Scenarios
The Professional Cable Identification Labels are essential wherever clear, durable cable identification is required for safety, maintenance, and compliance:
- Data centers & server rooms: Label network cables (Ethernet Cat6/Cat7, fiber optic, DAC), power cords, PDU connections, and KVM cables — reduces troubleshooting time by up to 80% and prevents accidental disconnections during maintenance.
- Electrical panels & switchgear: Identify circuit wires, breaker connections, control wiring, and grounding conductors — meets NEC/NFPA 70E labeling requirements for electrical safety.
- Industrial automation & control cabinets: Mark sensor cables, motor leads, Profibus/Profinet cables, I/O wiring, and VFD connections — withstands oil, vibration, and temperature swings.
- Telecommunications & broadcast: Label fiber optic cables, coax, audio snakes, patch panel connections, and base station wiring — color coding speeds up field service and reduces signal routing errors.
- Renewable energy (solar & wind): Identify DC/AC cables, inverter connections, battery bank wiring, and monitoring circuits — UV-resistant and weatherproof for outdoor installations.
- Marine & offshore: Saltwater-resistant markers for shipboard electrical systems, navigation equipment, engine room wiring, and communication cables — withstands humidity, salt spray, and vibration.
- Residential & commercial electrical: Home theater wiring, security camera cables, intercom systems, structured cabling, and breaker panel identification — provides a professional, neat appearance that simplifies future upgrades and inspections.
- Aerospace & defense: Heat-shrink markers for wire harnesses, avionics cables, ground support equipment, and radar systems — meets MIL-STD-130 identification requirements.
Benefits for Customers
Facility managers, network engineers, electrical contractors, and procurement professionals choose our Professional Cable Identification Labels to reduce downtime, improve safety, and lower operational costs. Tangible value includes:
- Reduced troubleshooting time (up to 80%): Clear, readable labels cut cable tracing time from minutes to seconds — saving hours per week in data centers and industrial plants. Faster mean time to repair (MTTR).
- Lower risk of errors and accidents: Proper identification prevents accidental disconnection of critical cables during maintenance, reducing unplanned downtime. Clear labeling of power cables and hazardous voltage lines reduces risk of electrical accidents.
- Compliance with industry standards: Meets TIA/EIA-606 (cable labeling standard), NEC/NFPA 70E (electrical safety), UL 969, and other regulatory requirements — simplifies audits, inspections, and insurance reviews.
- Long-term cost savings: Durable materials eliminate frequent relabeling — reduces material and labor costs over the cable lifecycle. Estimated 70% reduction in relabeling expenses over 5 years.
- Improved team efficiency: Consistent labeling system enables any technician — regardless of familiarity with the installation — to quickly identify cables, reducing training time and onboarding costs.
- Flexible order quantities: From prototype to millions — our digital and flexo hybrid production ensures competitive pricing and short lead times (as fast as 5 business days for custom orders).
- ESD protection (anti-static variant): Protects sensitive electronic equipment in data centers and manufacturing environments, reducing static-related failures and warranty claims.
- Professional appearance: Clean, consistent labeling enhances the perceived quality of your installation — valuable for client-facing data centers, control rooms, and commercial electrical work.
Customization Options
We understand that every cable management system has unique requirements. As a specialist in Customized self-adhesive labels, we offer extensive modifications for the Professional Cable Identification Labels:
- Dimensions & shape: Custom label sizes for specific cable diameters; flag-style lengths for easy readability (extended tabs up to 75mm); die-cut shapes for unique applications (e.g., arrow-shaped markers for direction indication).
- Material selection: Polyester (standard, flame-retardant UL94 V-0, ultra-thin for tight bends), polypropylene, heat-shrink polyolefin (3:1 and 4:1 shrink ratios), vinyl, anti-static PET, low-halogen options for environmentally sensitive areas.
- Adhesive engineering: Permanent high-tack for oily/rough cables, removable for temporary labeling (leaves no residue), low-temperature for freezer/cold storage environments (-40°C), anti-static for ESD protection, high-temperature for engine compartments (+150°C).
- Printing & variable data: Digital printing (full color, Pantone matching, serial numbers, QR codes, Datamatrix, sequential numbering) with UV-stable inks; thermal transfer ready for on-demand printing; pre-printed custom logos and graphics.
- Color coding: 10 standard colors plus custom color matching (PMS or RGB) — create visual grouping systems for different cable types, zones, voltage levels, or priority levels.
